Welded Razor Mesh

Product Categories
Top Fencing Co.Limited
Contact Now

Welded Razor Mesh

Brand Name : LNF

Model Number : Welded Razorr Mesh

Certification : ISO

Place of Origin : Australia

MOQ : 100 roll

Price : 1200$ per ton

Payment Terms : Western Union, T/T

Supply Ability : 10000 pcs per week

Delivery Time : 15 days

Packaging Details : Pallet

Length : 20mm to 200mm (3/4" to 8")

Head diameter : 2mm-12mm

Shank diameter : 1.2mm-6mm

Type : Concrete Nail

Material : Steel

Standard : DIN,ISO,ANSI,BS

Packing : Carton

Product name : New galvanized iron wire roll manufacture galvanized iron wire price

Shank : Smooth,Barbed,Twisted or Smooth,Smooth/Twisted

Usage : Building Construction,Window of model steel door install,fence accessories

Surface treatment : Electro Galvanized,Polished/Galvanized,hot-dip galvanized

Color : Silver,bright

Head : Flat,Umbrella Head

Finish : Polished,Galvanized Finish or pvc coated,Galvanized Finish

Application : Construction Material,Construction Ect,Use with barbed wire

Point : Diamond Point

Package : 16d common nails in 25kg/carton

Key words : fence staple

Contact Now

Welded Razor Mesh
* Welded razor wire mesh diamond shape, BTO-22 and BTO-30 with hole aperture 75 mm × 150 mm, HDG finish, 1.2 m × 6 m.
* Welded razor wire mesh, BTO-22 or BTO-12, mesh size: 100 mm × 100 mm, panel size: 2 meter × 3 meter.
* Welded razor wire fence, for stopping people from climbing the railing, 25' length and 3.5' height.
* Welded razor wire mesh 1200 m long and 2.0 m high.
* Welded razor wire and the T-shaped poles to cover 1800 mm high × 125 m long.
* 120 m length and 500 mm coil diameter welded razor wire mesh on top of a palisade fence
* Welded razor wire mesh 1800 mm high to cover 245 m in the airport area.
* Welded razor wire mesh with height of 3 m and length 1000 m.
* Welded razor mesh 2.4 m height × 500 m length and 1.8 m height × 500 m length.
* Razor mesh fence. * Material: galvanized steel
* Hole size: 30 × 15 mm
* Height: 2 m.

* Razor wire fence. * Wires material: galvanized iron.
* Strip thickness 0.5 mm.
* Core wire diameter 2.5 mm.
* Blade thickness: 0.5 mm.
* Blade size: 2.5 mm.

* Galvanized razor wire mesh. * Core wire: cold rolled spring steel.
* Core wire diameter: 2.5 mm - 2.6 mm.
* Zinc coating on wire: 220 GSM.
* Zinc coating on blades strip: 270 GSM.
* Blades width: 11-12 mm.
* Base of the blade: 10 mm.
* Blade to blade distance: 22 mm.
Welded Razor Mesh
Peference
number
Thickness
(mm)
Wire dia
(mm)
Barb length
(mm)
Bard width
(mm)
Bard spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
34±1
BTO-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±2
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±2
Barbed Tape Wire Specification
Loop Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
7-8M
CBT-60.65
Single coil
500mm
56
12-13M
CBT-60.65
Single coil
700mm
56
13-14M
CBT-60.65
Single coil
960mm
56
14-15M
CBT-60.65
Single coil
450mm
56
8-9m(3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
500mm
56
9-10M (3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
600mm
56
10-11M(3 CLIPS)
BTO-10.12.18.22.28.30
Cross type
600mm
56
8-10M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
700mm
56
10-12M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
800mm
56
11-13M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
900mm
56
12-14M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
960mm
56
13-15M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
980mm
56
14-16M (5 CLIPS)
BTO-10.12.18.22.28.30
Cross type
Welded Razor MeshWelded Razor MeshWelded Razor MeshWelded Razor Mesh
Specification
Welded Razor Wire Mesh Fence
Mesh Size (mm)
Mesh Shape
Width
Surface Treatment
Suited Blade
75*150150*300
100*100
150*150
200*200
or as your need
Square or Diamond
1.2m-2.4m
HDG or PVC Coated
BTO-10,12,18,22,28,30.CBT-60.65
Welded Razor Mesh
Reference
Number
Thickness
Wire Dia
Barb
Length
Barb
Width
Barb
spacing
BTO-10
0.5±0.05
2.5±0.1
10±1
13±1
25±1
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
25±1
BTO-18
0.5±0.05
2.5±0.1
18±1
15±1
35±1
BTO-22
0.5±0.05
2.5±0.1
22±1
15±1
36±1
BTO-28
0.5±0.05
2.5
28
15
46±1
BTO-30
0.5±0.05
2.5
30
18
46±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
101±2
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
8M
CBT-65
Single coil
500mm
41
10M
CBT-65
Single coil
700mm
41
10M
CBT-65
Single coil
960mm
53
13M
CBT-65
Single coil
500mm
102
16M
BTO-10.15.22
Cross type
600mm
86
14M
BTO-10.15.22
Cross type
700mm
72
12M
BTO-10.15.22
Cross type
800mm
64
10M
BTO-10.15.22
Cross type
960mm
52
9M
BTO-10.15.22
Cross type
Feature
The benefits of welded razor wire mesh :
1. It is almost impossible to climb.
2. High-strength steel core very difficult to cut off.
3. Powerful security fence barriers neat appearance.
4. No secondary use, so he will not be stolen.
5. Extremely simple to install, needs three to four to install molding.
Razor Barbed Wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence.
What kind of Razor concertina wire can we supply?
Welded Razor Mesh
Welded Razor Mesh

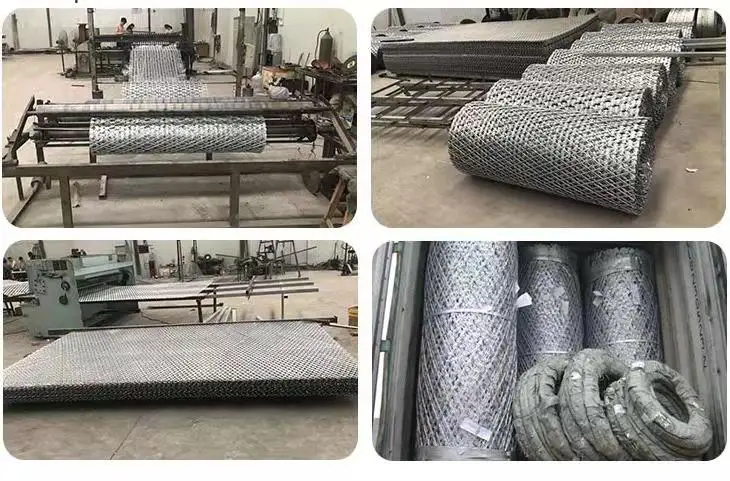

Product packaging
