welded 358 high security prison wire mesh fence

Name: welded 358 high security prison wire mesh fence
Brand: LNF-Clearvu Fence
Price: 18.66 USD

Quality welded 358 high security prison wire mesh fence for sale

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 STEEL

Color : Painted any color

Mesh Opening : 3"x0.5" or 12.70mm x 76.20mm

Diameter : 3.00mm,3.5mm ,3.8mm,4.00mm

Treatment : Gal ,Hot Dipped Gal,Powder Painted

Mesh Type : Weld at intersection

Market : African ,USA ,Australia

Service Life : 5 Year -25 Years depand on treatment

Contact Now

welded 358 high-security prison wire mesh fence

Material: low carbon steel wire
Wire Dia: 4mm, 5mm
Mesh Hole: 76.2 x 12.7mm ,75x13mm
Height: 2400mm, 2500mm, 3000mm
Width:2500mm,3000mm
Surface Treatment :hot dipped galvanized, galvanized and powder coated,pvc coated
Features:
1)Anti-climb: More small openings makes it difficult to climb and penetrate.
2) Anti-cut: Robust wire and welded joints make it impossible to be
cut by conventional wire cutters

Panels			Posts
Fence	Panel Size	section	O/A Length	Total number of fixings
Height m	Height/Width mm			Inters- 1 Clamp bar	Corners- 2 Clamp bars
2.0	2007 x 2515	60x60x2.5mm	2700	7	14
2.4	2400 x 2515	60x60x2.5mm	3100	9	18
3.0	2997 x 2515	80x80x2.5mm	3800	11	22
3.3	3302 x 2515	80x80x2.5mm	4200	12	24
3.6	3607 x 2515	100x60x3mm	4500	13	25
3.6	3607 x 2515	100x100x3mm	4500	14	2

Panels		Posts
Fence	Panel Size	section	O/A Length	Total number of fixings
Height m	Height/Width mm			Inters- 1 Clamp bar	Corners- 2 Clamp bars
4.2	4204 x 2515	100x100x4mm	5200	15	30
4.5	4496 x 2515	100x100x5mm	5500	16	32
5.2	5207 x 2515	120x120x5mm	6200	18	36

ANTI CLIMB FENCE is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see-through visibility. It has a toe and finger proof profile. With the spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our anti-climb fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework are very strong resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from the inside of your own.

Product Application

With excellent see-through visibility makes anti-climb fencing is very suitable to use on commercial, governmental and industrial properties where you can enjoy both the ultimate security without compromising the visibility of customers and others. And it is also suitable for premium housing estate development, apartments and condominium surroundings, schools, business parks, warehouses, power plants, military sites, educational facilities, hospitals and residential areas.

specification

Panel size H*W (mm)	Post size LWT(mm)	Post Height	Clamp Inter/Corners
2000*2400	60602.5mm	2700	7/14
2400*2515	60602.5mm	3100	9/18
2997*2515	80802.5mm	3800	11/22
3607*2515	100603mm	4500	13/26
4204*2515	1001004mm	5200	15/30
4496*2515	1001005mm	5500	16/32
5207*2515	1201205mm	6200	18/36

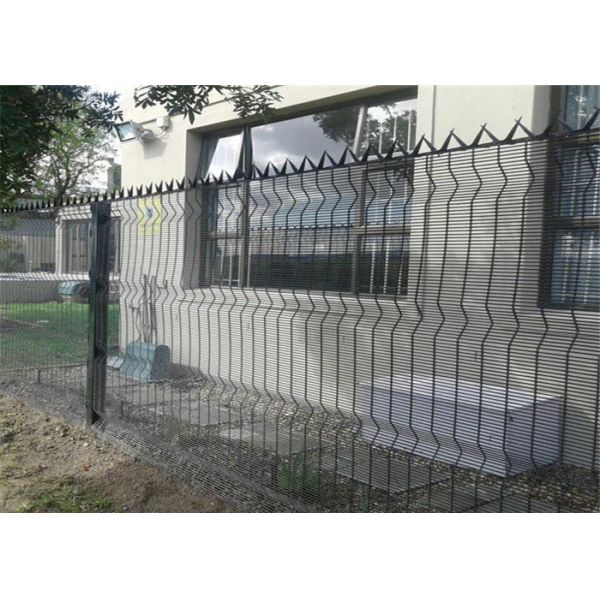

welded 358 high security prison wire mesh fence

welded 358 high security prison wire mesh fence Images
